[ FIELD-PROVEN · ALL-ELECTRIC · EXPLOSION-PROOF ]

Robotics for the Rig.

We automate the wellhead. Operators stay in the cab — robots take the floor. 80% less labor. 3× the cycle speed. Zero red-zone exposure.

Request Field Trial Read the Datasheet

// PLATFORM v2.0

// STATUS: DEPLOYED · 99.4% UPTIME

LBS PAYLOAD 375 · ARM REACH 23.6 FT · CYCLE 38S · UPTIME 99.4% · ATEX ZONE 1 · LBS PAYLOAD 375 · ARM REACH 23.6 FT · CYCLE 38S · UPTIME 99.4% · ATEX ZONE 1 · LBS PAYLOAD 375 · ARM REACH 23.6 FT · CYCLE 38S · UPTIME 99.4% · ATEX ZONE 1 · LBS PAYLOAD 375 · ARM REACH 23.6 FT · CYCLE 38S · UPTIME 99.4% · ATEX ZONE 1 · LBS PAYLOAD 375 · ARM REACH 23.6 FT · CYCLE 38S · UPTIME 99.4% · ATEX ZONE 1 · LBS PAYLOAD 375 · ARM REACH 23.6 FT · CYCLE 38S · UPTIME 99.4% · ATEX ZONE 1 · LBS PAYLOAD 375 · ARM REACH 23.6 FT · CYCLE 38S · UPTIME 99.4% · ATEX ZONE 1 · LBS PAYLOAD 375 · ARM REACH 23.6 FT · CYCLE 38S · UPTIME 99.4% · ATEX ZONE 1 · LBS PAYLOAD 375 · ARM REACH 23.6 FT · CYCLE 38S · UPTIME 99.4% · ATEX ZONE 1 · LBS PAYLOAD 375 · ARM REACH 23.6 FT · CYCLE 38S · UPTIME 99.4% · ATEX ZONE 1 · LBS PAYLOAD 375 · ARM REACH 23.6 FT · CYCLE 38S · UPTIME 99.4% · ATEX ZONE 1 · LBS PAYLOAD 375 · ARM REACH 23.6 FT · CYCLE 38S · UPTIME 99.4% · ATEX ZONE 1 ·

[ 01 — CAPABILITIES ]

// SECTION 01 / 07

We Automate the Red Zone.

Pipe transfer, positioning, makeup/breakout — automated end-to-end. All-electric. Explosion-proof. Operators stay in the cab. Robots take the floor.

Autonomous Pipe Handling

Pipe transfer, alignment, and stand-back — end-to-end. 7.2 m reach envelope. Zero hands on the floor.

Electric Power Tong (IRONCLAW™)

Closed-loop torque. Continuous speed regulation. Makeup/breakout 50%+ faster than manual.

Remote Wellsite Operations

Operators 50+ ft from the wellhead. Hardened cabin — full control, full telemetry, no exposure.

Real-Time Telemetry & Safety

Continuous torque, position, and load streams. Overload trip, anti-misoperation, ATEX Zone 1 envelope.

Workover + Drilling Ready

One platform — tubing pull/run-in, drill pipe, rod work. Drops onto existing wellsite equipment.

All-Electric, Field-Hardened

No hydraulics. IP-rated, dustproof, explosion-proof. Continuous duty −4 °F → 131 °F.

[ 02 — PLATFORM ]

// SECTION 02 / 07

Cyber Wrangler™ 2000 — Core Operations Workstation.

One workstation — pipe-handling manipulator and electric power tong, integrated. All-electric. Explosion-proof. Continuous duty in the harshest land-rig conditions. Engineered, deployed, and supported by Petro Robotics.

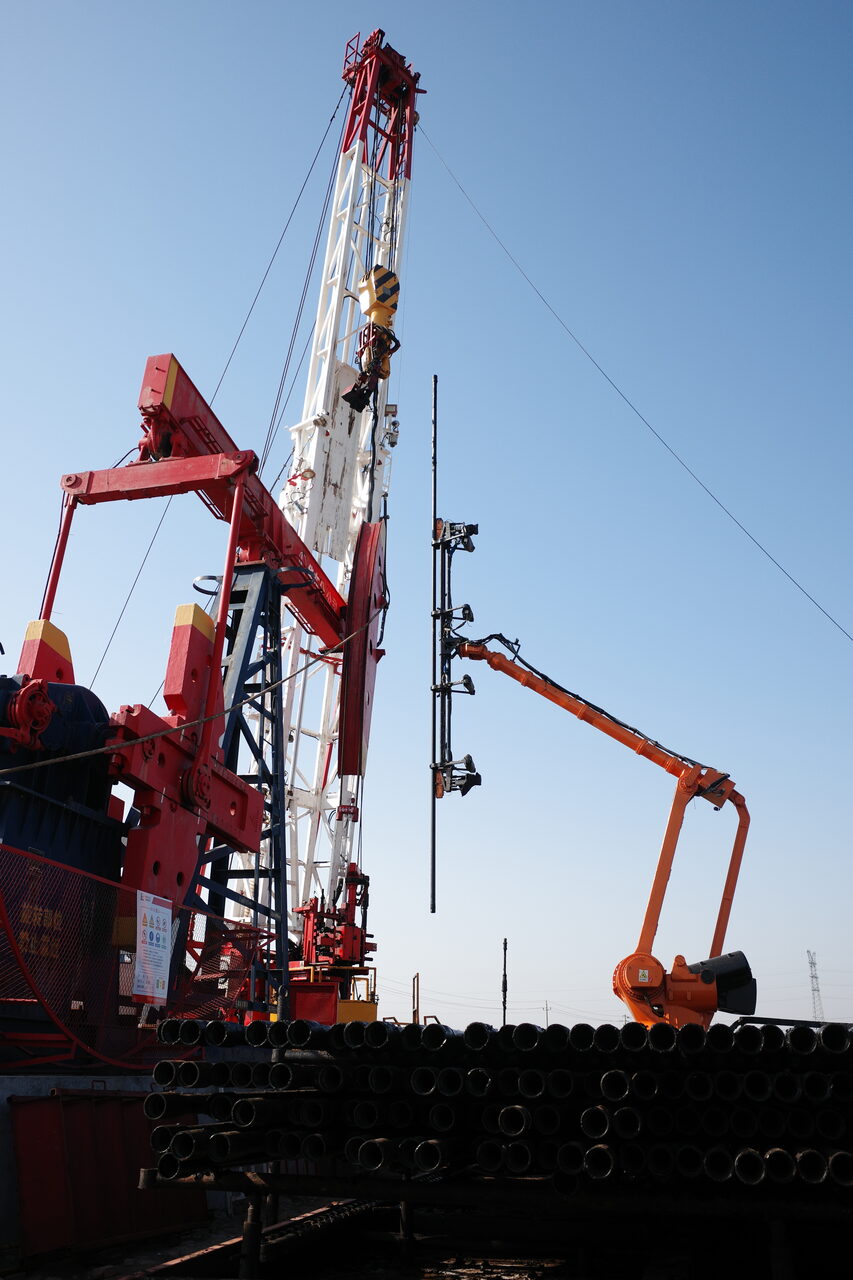

Cyber Wrangler 2000 robotic manipulator extended against the sky

ARM REACH

23.6 FT

7.2 m

LIFTING HEIGHT

30.3 FT

9.25 m

MAX GRIPPING PAYLOAD

375 LB

170 kg

GRIPPING DIAMETER

Ø 0.75 – 7.44 IN

Ø 19 – 189 mm

LINEAR SLIDE STROKE

16.4 FT

5 m

PIPE LAYOUT WIDTH

32.8 FT

10 m

CRAWLER TRAVEL SPEED

65.6 FT/MIN

20 m/min

CLIMBING ANGLE

≤ 5°

grade-rated

RATED VOLTAGE / POWER

380 V · 37.5 kW

all-electric

OPERATING TEMP

−4 °F → 131 °F

−20 °C → 55 °C

GROSS WEIGHT

50,706 LB

23 metric tons

TRANSPORT FOOTPRINT

28.4 × 11.2 × 7.5 FT

8.65 × 3.4 × 2.3 m (L×H×W)

WORKING FOOTPRINT

37.9 × 30.3 × 14.6 FT

11.57 × 9.25 × 4.45 m

DRIVE

ALL-ELECTRIC

crawler + outrigger optional

CERTIFICATION

EXPLOSION-PROOF

pending NA Class I Div 1

// SOURCE: Cyber Wrangler™ 2000 datasheet · rev 2026.05

[ 03 — IRONCLAW™ ]

// SECTION 03 / 07

Torque You Can Trust.

IRONCLAW™ — the dedicated electric power tong for the Cyber Wrangler workstation. Closed-loop torque, continuous speed regulation, overload trip. Engineered to eliminate the failure modes of manual coupling work.

Precise & Controllable

Closed-loop torque, continuous speed. No shackle damage. No jamming.

>50% Faster

Rapid mode breaks out couplings 50%+ faster than a manual crew.

Safe by Design

Overload trip and anti-misoperation logic. Removes the injury vector entirely.

High Adaptability

Native to the Cyber Wrangler workstation. Runs standalone for routine coupling work.

[ 04 — IN THE FIELD ]

// SECTION 04 / 07

Deployed. Not Demoed.

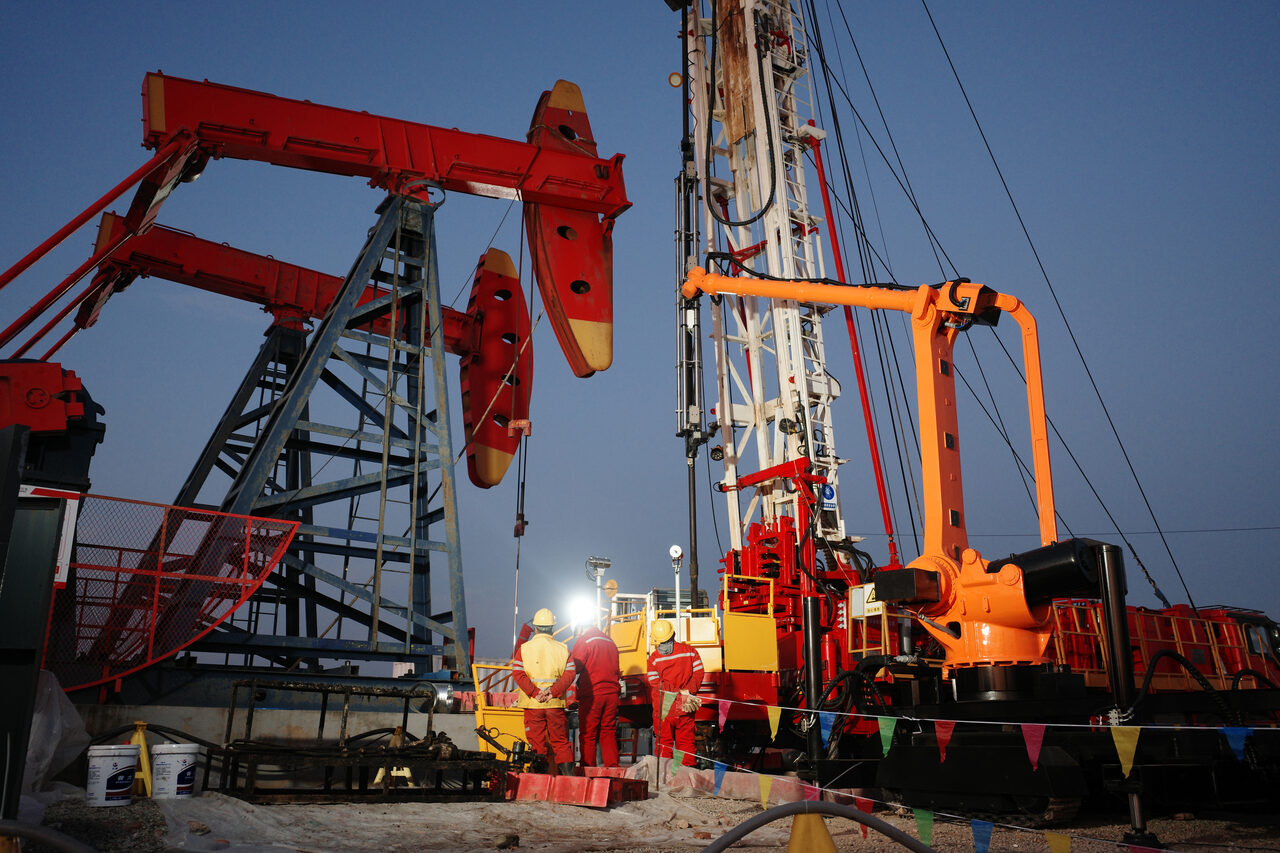

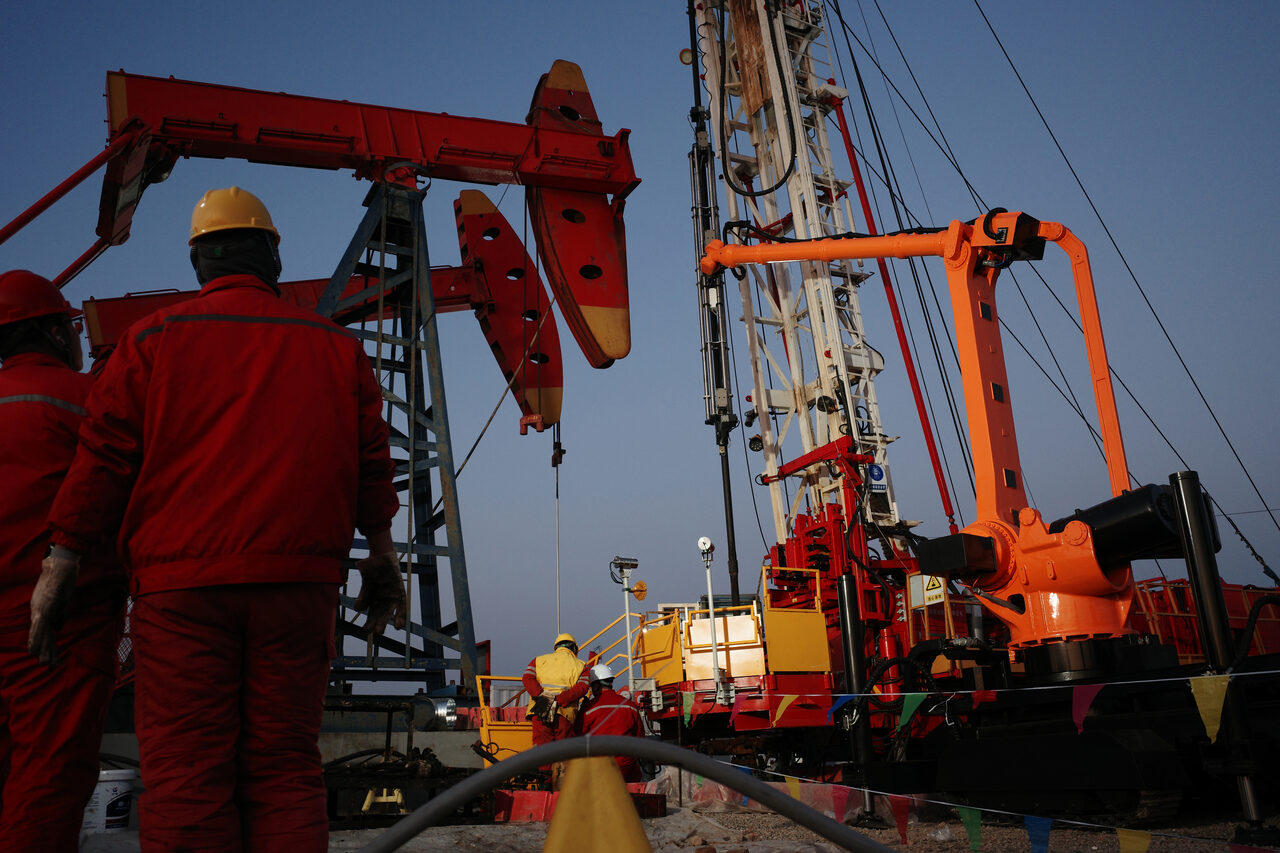

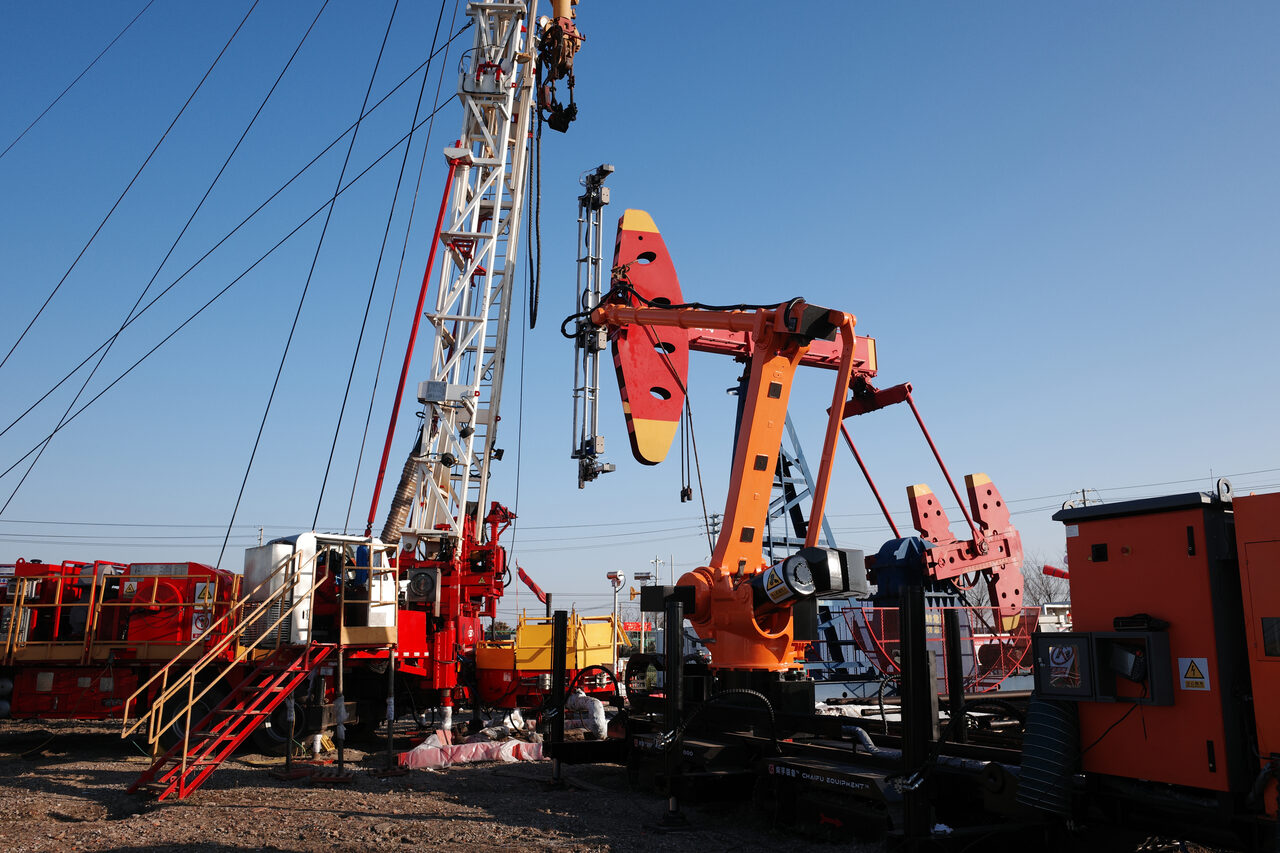

Field-proven on land oil wells. Below: real workstation operations on real rigs. No renders.

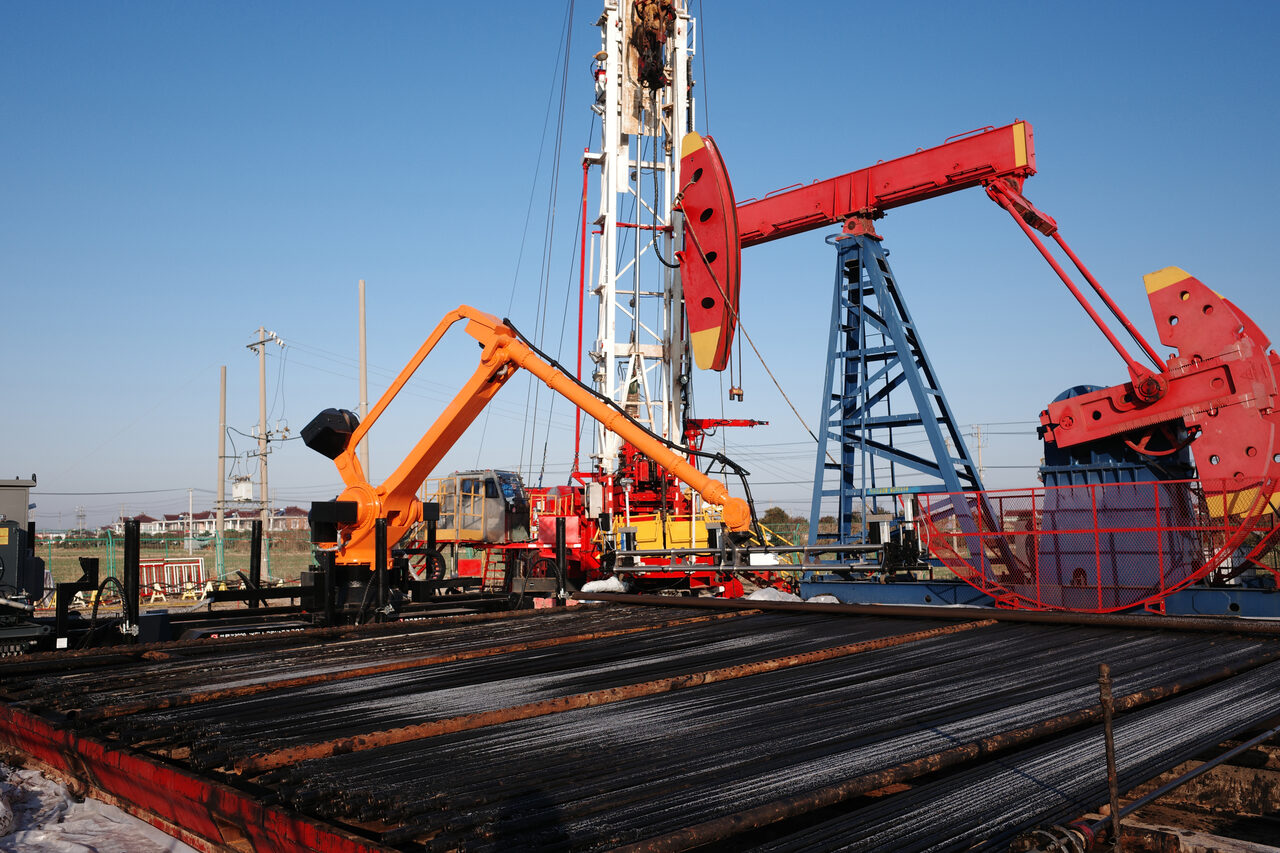

// SITE PANORAMA · WORKING FOOTPRINT 11.6M

[ 05 — IMPACT ]

// SECTION 05 / 07

The Operational Delta.

Automated vs. manual. Field-measured. No projections.

Labor Reduction

vs. manual pipe handling

0×

Faster Operations

cycle-time uplift

0.0%

Uptime

field-measured availability

Red-Zone Incidents

since first deployment

[ 06 — DOCTRINE ]

// SECTION 06 / 07

Why We Built This.

Oil-well work is dangerous because we still do it the way we did fifty years ago. Crews work inches from rotating equipment under thousands of pounds of moving steel. The "red zone" is where most rig injuries happen — and it shouldn't have a human in it.

We didn't invent another safety device. We removed the human.

Our platform — the Cyber Wrangler™ 2000 workstation, paired with the IRONCLAW™ electric power tong — handles pipe transfer, alignment, and makeup/breakout end-to-end. Operators stay in the cab. The robot takes the floor. The math is straightforward: 80% less labor, 3× the cycle speed, zero red-zone exposure.

It's already running. It's already certified. It's ready for your rig.

"Operators stay in the cab. Robots take the floor."

[ 07 — DEPLOY ]

Deploy Robotics to Your Rig.

Field trials are open for North American operators. Send your asset profile — we return a deployment plan in 48 hours.
